How to extend Episerver Forms

How do I link two dropdown fields in Episerver such that the values of a dropdown are based on the selected value of another?

Solution:

1. Use the existing Episerver form field “Selection” for the first dropdown

2. Expose a new dropdown field (i.e. “Secondary selection”) that would derive from the field above and introduce new properties

The code

1. Extend the OptionItem.cs Episerver class

public class DependentOptionItem : OptionItem
{
   [Display(
      Name = "Value relevant to",
      Order = 4000)]
   public virtual string ValueRelevantTo { get; set; }
}

2. Tell Episerver how to treat the new custom option item as as a property

[PropertyDefinitionTypePlugIn]
public class DependentOptionItemProperty : PropertyList<DependentOptionItem>
{
   protected override DependentOptionItem ParseItem(string value)
   {
      return JsonConvert.DeserializeObject<DependentOptionItem>(value);
   }
}

3. Now, we can expose a new dropdown field, calling it “Secondary selection”. Things to note:

• Derive from SelectionElementBlockBase (existing dropdown field)

• GroupName & ordering has been set so it’s positioned next to the existing dropdown in the CMS

• The ImageUrl has been set to make the authors happy

• The “Items” property has been overriden to use our new DependentOptionItem above

[ContentType(
   DisplayName = "Secondary Selection",
   GUID = "d9f2477f-3d53-441a-b5eb-75eebb7106b7",
   GroupName = "BasicElements",
   Description = "Used to display values that are dependent on another selection element's value",
   Order = 2301)]
[ImageUrl("/static/images/contenttypes/selectionelementblock.png")]
public class SecondarySelectionElementBlock : SelectionElementBlockBase
{
   [EditorDescriptor(EditorDescriptorType = typeof(CollectionEditorDescriptor))]
   public override IEnumerable<DependentOptionItem> Items { get; set; }

   [Display(
      Name = "Dependent on field",
      Order = -3001)]
   [Required]
   [AllowedTypes(typeof(InputElementBlockBase))]
   public virtual ContentReference DependentOnField { get; set; }
}

4. It’s time to register a UIDescriptor for our new dropdown field

[UIDescriptorRegistration]
public class SecondarySelectionElementBlockDescriptor : FormElementBlockDescriptor<SecondarySelectionElementBlock>
{
}

5. Add some CSS to make sure an icon gets rendered against our new dropdown field (feel free to use your own! I just copied the icon from the existing dropdown)

.epi-forms-icon.epi-forms-secondaryselectionelementblock__icon {
    background: url(/static/gfx/formIcons16x16.png) 0px -64px no-repeat;
}

6. HTML time – this is pretty much a clone of the SelectionElementBlock.cshtml but utilising the two new properties:

@model YourLegalFriend.Content.Forms.SecondarySelectionElementBlock

@{
	var formElement = Model.FormElement;
	var labelText = Model.Label;
	var placeholderText = Model.PlaceHolder;
	var defaultOptionItemText = !string.IsNullOrWhiteSpace(placeholderText)
		? placeholderText :
		Html.Translate(string.Format("/episerver/forms/viewmode/selection/{0}", Model.AllowMultiSelect ? "selectoptions" : "selectanoption"));
	var defaultOptionSelected = Model.Items.Count(x => x.Checked.HasValue && x.Checked.Value) <= 0 ? "selected=\"selected\"" : "";
	var items = Model.GetItems();
	var defaultValue = Model.GetDefaultValue();
}

@using (Html.BeginElement(Model, new { @class = "FormSecondarySelection FormSelection" + Model.GetValidationCssClasses(), data_f_type = "selection" }))
{
	<label for="@formElement.Guid" class="Form__Element__Caption">@labelText</label>
	<select name="@formElement.ElementName" id="@formElement.Guid" @(Model.AllowMultiSelect ? "multiple" : "") @Model.AttributesString
			@RenderDependentField() disabled="disabled">
		<option disabled="disabled" @defaultOptionSelected value="">@defaultOptionItemText</option>

		@foreach (var item in items)
		{
			var defaultSelectedString = Model.GetDefaultSelectedString(item, defaultValue);
			var selectedString = string.IsNullOrEmpty(defaultSelectedString) ? string.Empty : "selected";

			<option value="@item.Value" @selectedString @defaultSelectedString data-f-datainput data-relevant-to="@item.ValueRelevantTo">@item.Caption</option>
		}
	</select>
}

@helper RenderDependentField()
{
	if (Model.DependentOnField != null)
	{
		@Html.Raw("data-dependent-on=\"" + Model.DependentOnField.GetContentGuid() + "\"")
	}
}

7. Javascript time – this handles disabling the options that are not relevant to the selected value of the primary dropdown

$('.EPiServerForms .FormSecondarySelection').each(function() {
   var $select = $(this).find('select');
   var $primarySelect = $('#' + $select.data("dependent-on"));

   // connect the primary select item to the secondary
   $primarySelect.change(function() {
      if ($select.is(':disabled')) {
         $select.prop('disabled', false);
      }

      // only display secondary options that are relevant to the primary value
      var primaryValue = $(this).val();
      $select.find('option').hide();
      $select.find('option[data-relevant-to="' + primaryValue + '"]').show();
   });
});

Build and run the application…

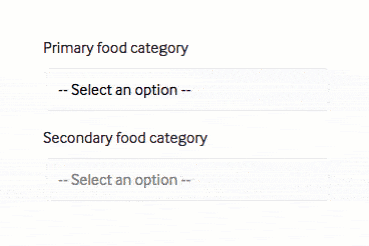

You should now see two dropdowns:

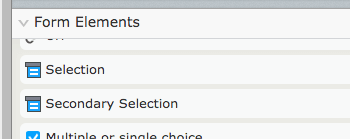

And also on the Basic Form elements panel:

And author away!
